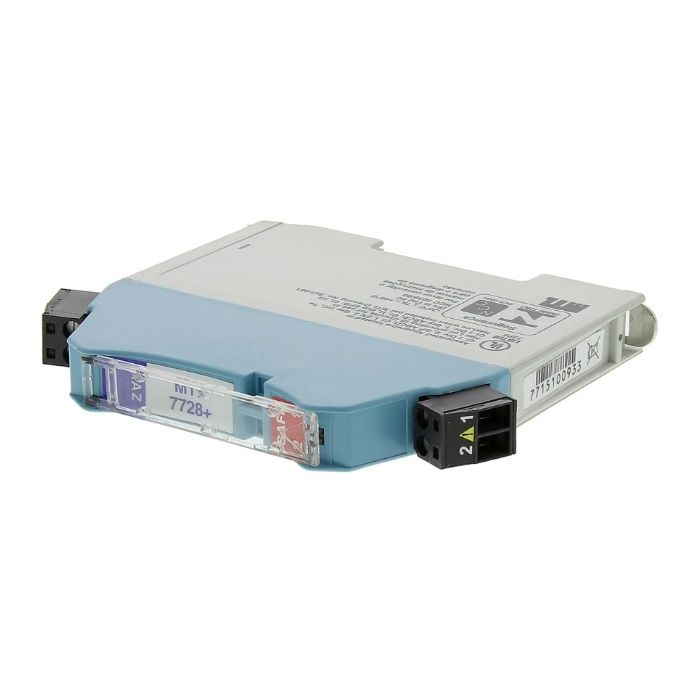

MTL7728+ Single Channel Zener Safety Barrier
In stock
SKU
MTL7728+
£71.33
£85.60
- Manufacturer : MTL
- Part Code : 7728+
- 1 Channel Barrier With Analogue Output
- Enclosures Supplied Separately
MTL7728+ Single Channel Zener Safety Barrier
The MTL7728+ is a single channel zener safety barrier.
Standard DIN rail mount
Removable, colour-coded terminals
Bussed power feed to other modules
Relay and solid state switch modules
Dual channel variants - 6.3mm per channel
Proximity detector inputs
Direct replacement for MTL700 Series
Compatible terminal numbering and safety descriptions
Dimensions: 105 x 90 x 12.6mm
MTL7728+ Single Channel Zener Safety Barrier Specification
| Barrier Type | Zener |
| Number of Channels | 1 |
| Supply Voltage | 28 V dc |
| Safety Voltage Maximum | 26 V dc |
| Safety Current Resistance | 300Ω |
| Safety Current Maximum | 93mA |
| Signal Type | Analogue |
| Minimum Operating Temperature | -20°C |
| Maximum Operating Temperature | +65°C |
| Hazardous Area Certification | ATEX |
| Operating Temperature Range | Maximum of +65 °C |
