- Manufacturer : MTL
- Part Code : MTL5561
- 2 Channel Galvanic Isolator
- Fire & Smoke Detector Interface

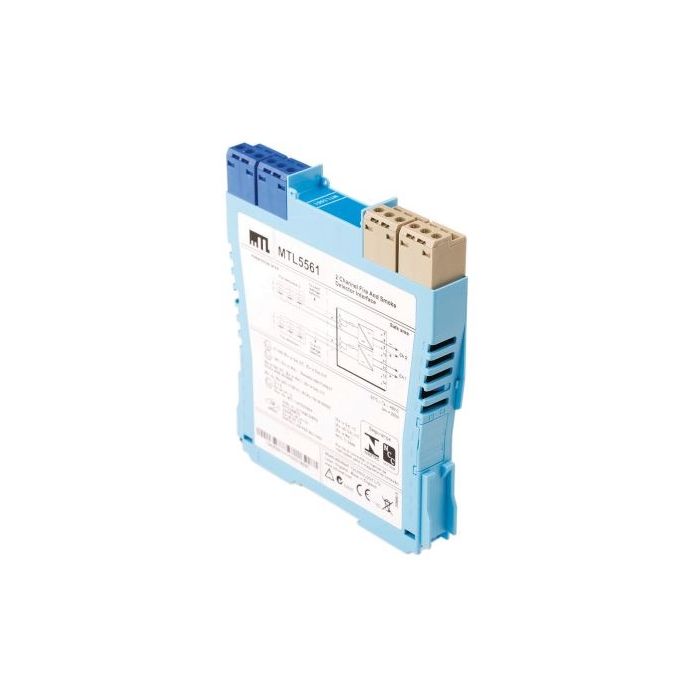

MTL5561 Galvanic Isolator
The MTL5561 is a loop-powered 2–channel interface for use with conventional fire and smoke detectors located in hazardous areas. In operation, the triggering of a detector causes a corresponding change in the safe–area current. The unit features reverse input polarity protection, while ‘no-fail’ earth fault detection on either line can be provided by connecting an earth leakage detector to terminal 3 and/or 6.
MTL5561 2 Channel Galvanic Isolator Specification
| Barrier Type | Galvanic |
| Number of Channels | 2 |
| Supply Voltage | 6 → 30 V dc |
| Safety Voltage Maximum | 28 V |
| Safety Current Maximum | 42mA |
| Signal Type | Analogue |
| Minimum Operating Temperature | -20°C |
| Maximum Operating Temperature | +60°C |
| Operating Temperature Range | -20 → +60 °C |
| Hazardous Area Certification | ATEX |
