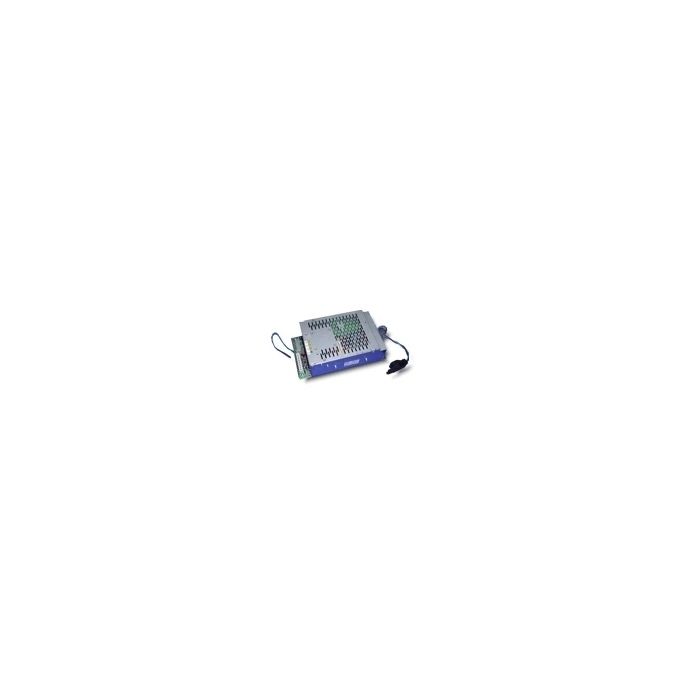

Tyco PSM800 Power Supply Unit - 557.202.003

PLEASE NOTE : The Tyco PSM800 power supply is now obsolete and no longer in production.  The manufacturer recommends using the Tyco PSU830 power supply as a replacement.

The Tyco PSM800 (557.202.003) Power Supply and Battery Charger can provide power for a wide range of ancillary devices and may be used as a primary or auxiliary power supply. It contains an integral battery charger which continuously charges back-up batteries. The PSM800M is the Marine version.

The Power Supply Module is a regulated 24V dc @ 5A, isolated switching power supply that operates from 120-240V ac @ 50/60Hz.

Tyco PSM800 Power Supply Unit Features

• Power Factor correction and auto-adjusting input for universal 100/255V ac operation
• Boost converter providing regulated +24V dc outputs
• Short circuit protection and fault isolation
• Manual or automatic output shutdown
• Recharges batteries up to 110Ah (UL864)
• Battery installation protection and battery wiring monitoring
  • Monitors battery charging voltage for low battery
  • Missing or reverse battery
  • Shorted battery wiring
• Remote reset facility
• Battery charger current limiting
• Battery charger and fault voltage temperature compensation
• Safe Extra low Voltage (SELV) outputs.
• Supplies controller power - regulated 5V dc @ 3A.
• Diagnostic LEDs for:
  • AC OK
  • Charger Fault
  • Battery Fault
  • Earth Fault
