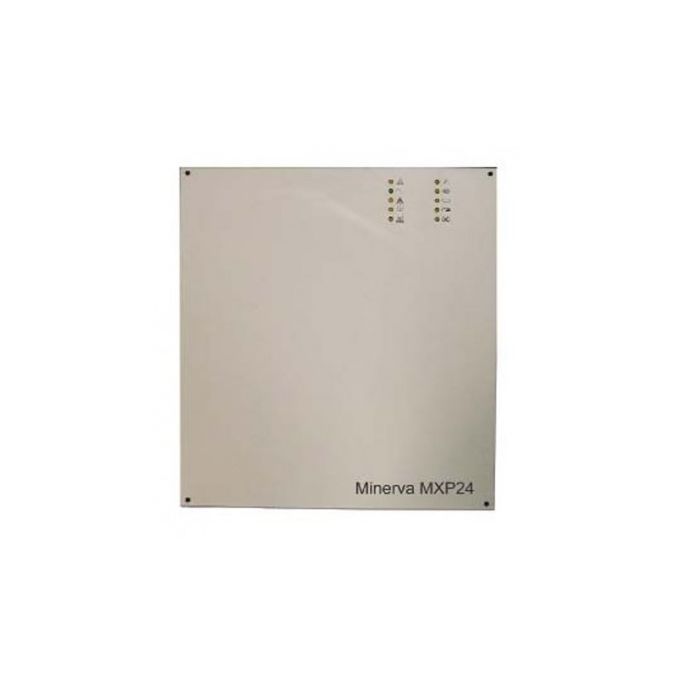

Tyco Minerva MXP24/50 Power Supply Unit - 558.004.020
In stock
SKU
MXP24/50 / 558.004.020
£536.25
£643.50
- Manufacturer : Tyco
- Part Code : MXP24/50 / 558.004.020
- Power Supply Unit
- Robust Metal Housing
Tyco Minerva MXP24/50 PSU
Tyco Minerva MXP24/50 Power Supply Unit - 558.004.020
The MXP24/50 PSU is approved by IMQ to EN 54-4:1997 + A1:2002 and EN60950-1:2001. The steel housing contains a 5 amp switch mode power supply and monitoring board and has space to accommodate 2 x 12V 17Ah sealed lead acid batteries. The 10 front panel LED's comprehensively indicate the status of the unit.
Features
- Robust metal housing
- Twin fused outputs
- Temperature compensated charging
- Deep discharge protection of batteries
- Fault relay output
- Size 383mm wide x 408mm high x 97mm deep
- Weight 4.3 Kg (excluding batteries)
- Operating temperature -5°C to +40°C
- Supply voltage 230VAC 50/60Hz
- Comprehensive LED status indication
